Bending
Panel benders, a robotised press brake cell and conventional press brakes with a bending line up to 3000 mm, plus shearing and corner forming.
Capacity
Panel bending up to 1.5 mm · bending line up to 3000 mm on press brakes
Shearing up to 3000 mm
For high-speed, precise series bending we use a Salvagnini P2lean panel bender and a Trumpf TruBend Center 7020. The Amada HFP 170-45 NT with an Astro-80 robot is a robotised press brake cell for repeatable series.
Conventional press brakes: 4 manual Trumpf press brakes with a bending line up to 3000 mm, 2 Darley 80 t (up to 2550 mm) and 3 Ermaksan 100 t (up to 3000 mm).
A Safan shearing machine cuts sheets up to 3000 mm, and an ACF machine forms the corners.
Machines
Salvagnini P2lean
1 pcs- Max. thickness
- 1.5 mm
- Max. diagonal
- 2400 mm
- Max. bending height
- 204 mm
Panel bender for high-speed, precise series bending.

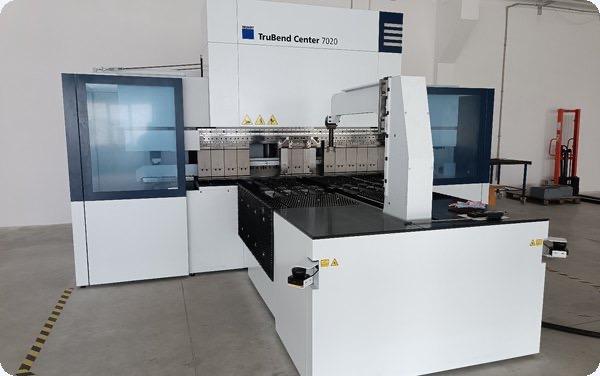

Trumpf TruBend Center 7020
1 pcs- Max. thickness
- 1.5 mm
- Max. bending line length
- 2000 mm
- Max. bending height
- 350 mm

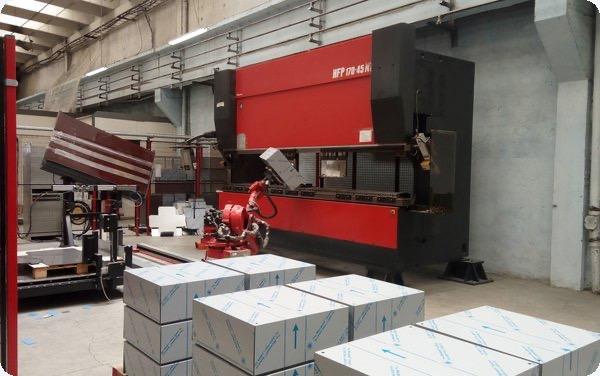

Amada HFP 170-45 NT + Astro-80
1 pcs Automated loading- Max. part weight
- 50 kg
Robotised press brake cell for repeatable series.
Trumpf manual press brake
4 pcs- Max. bending line length
- 3000 mm
Darley 80 t
2 pcs- Bending force
- 80 t
- Max. bending line length
- 2550 mm
Ermaksan 100 t
3 pcs- Bending force
- 100 t
- Max. bending line length
- 3000 mm
Safan shearing machine
1 pcs- Max. shearing length
- 3000 mm
